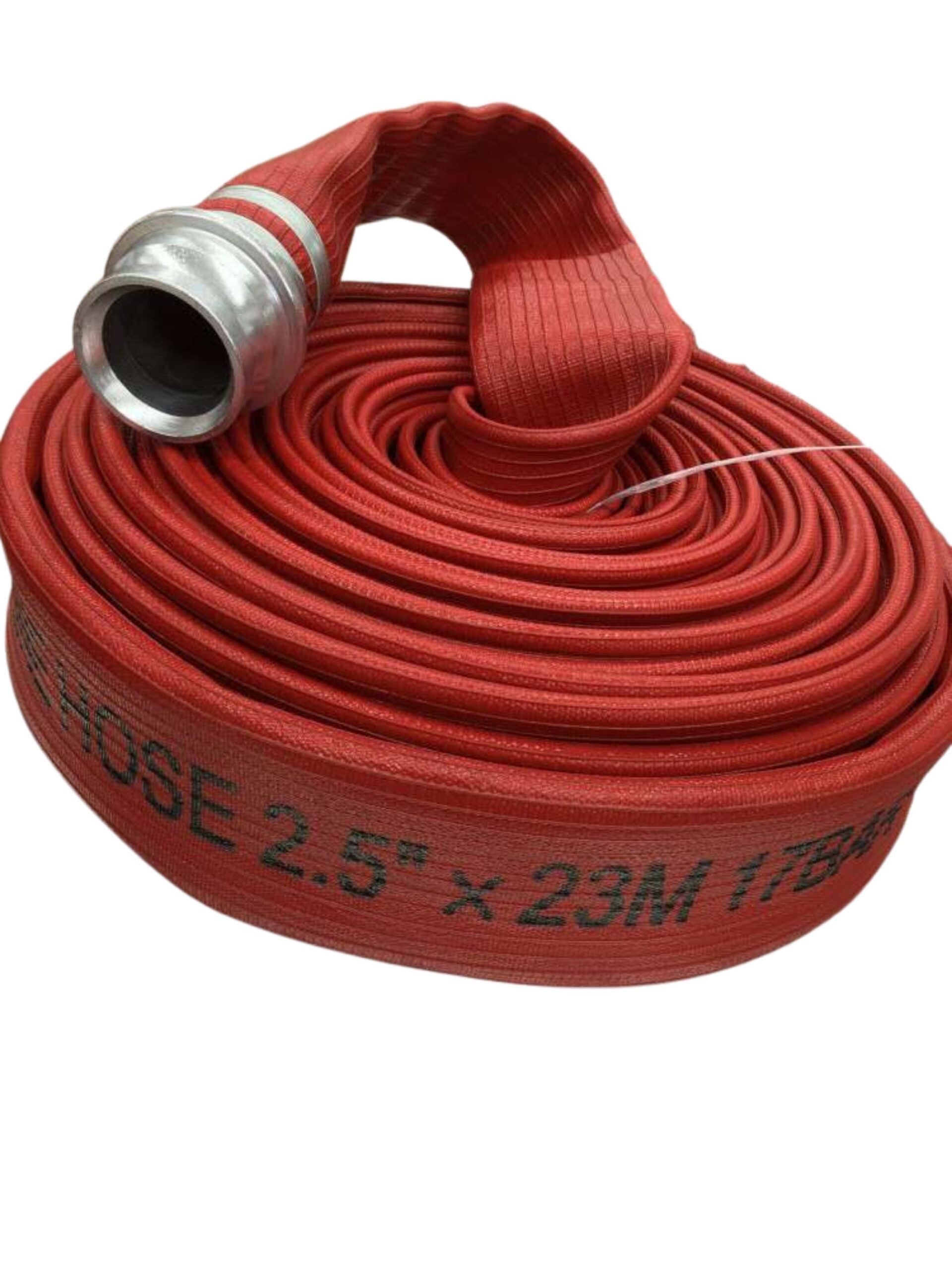

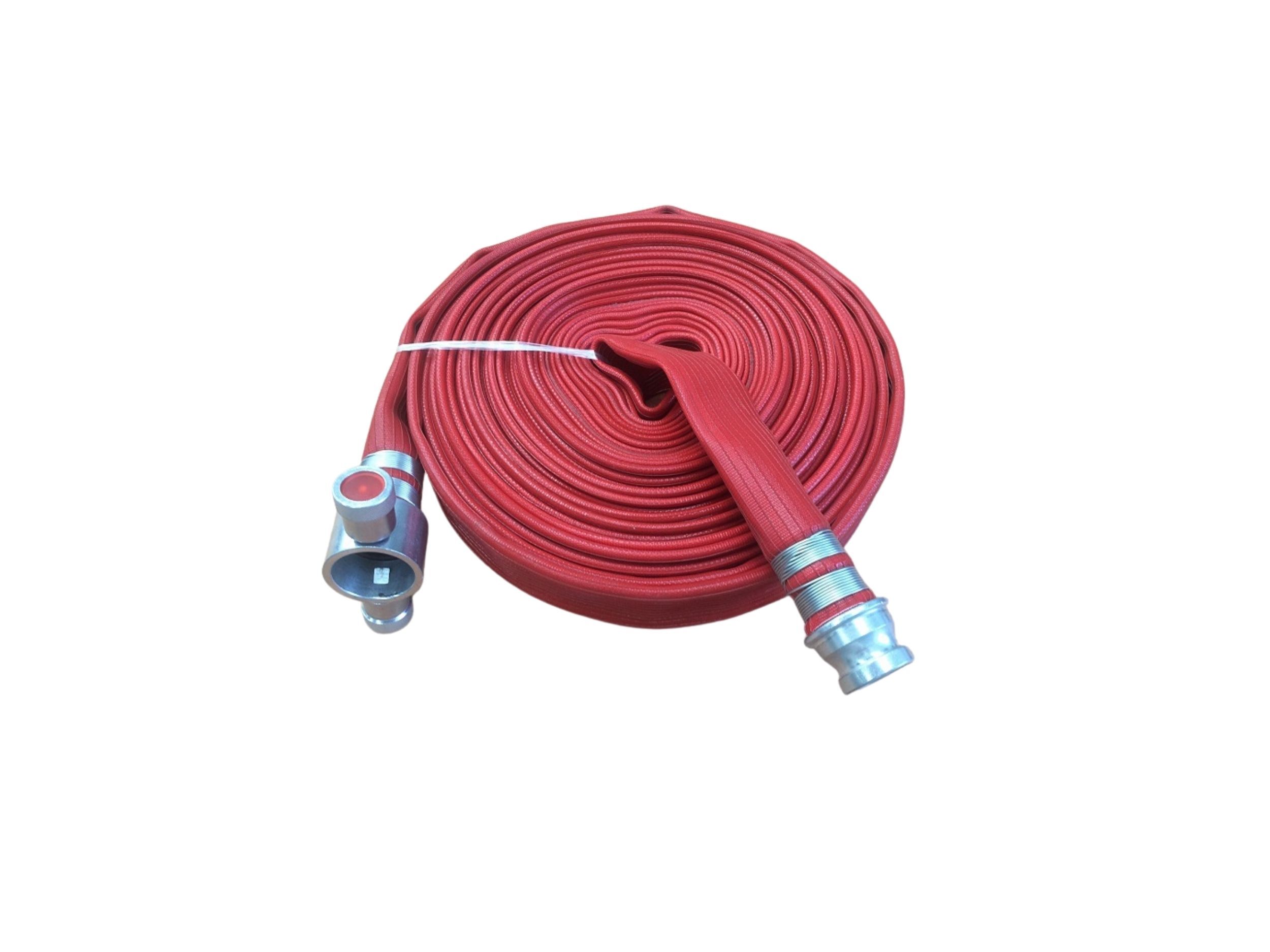

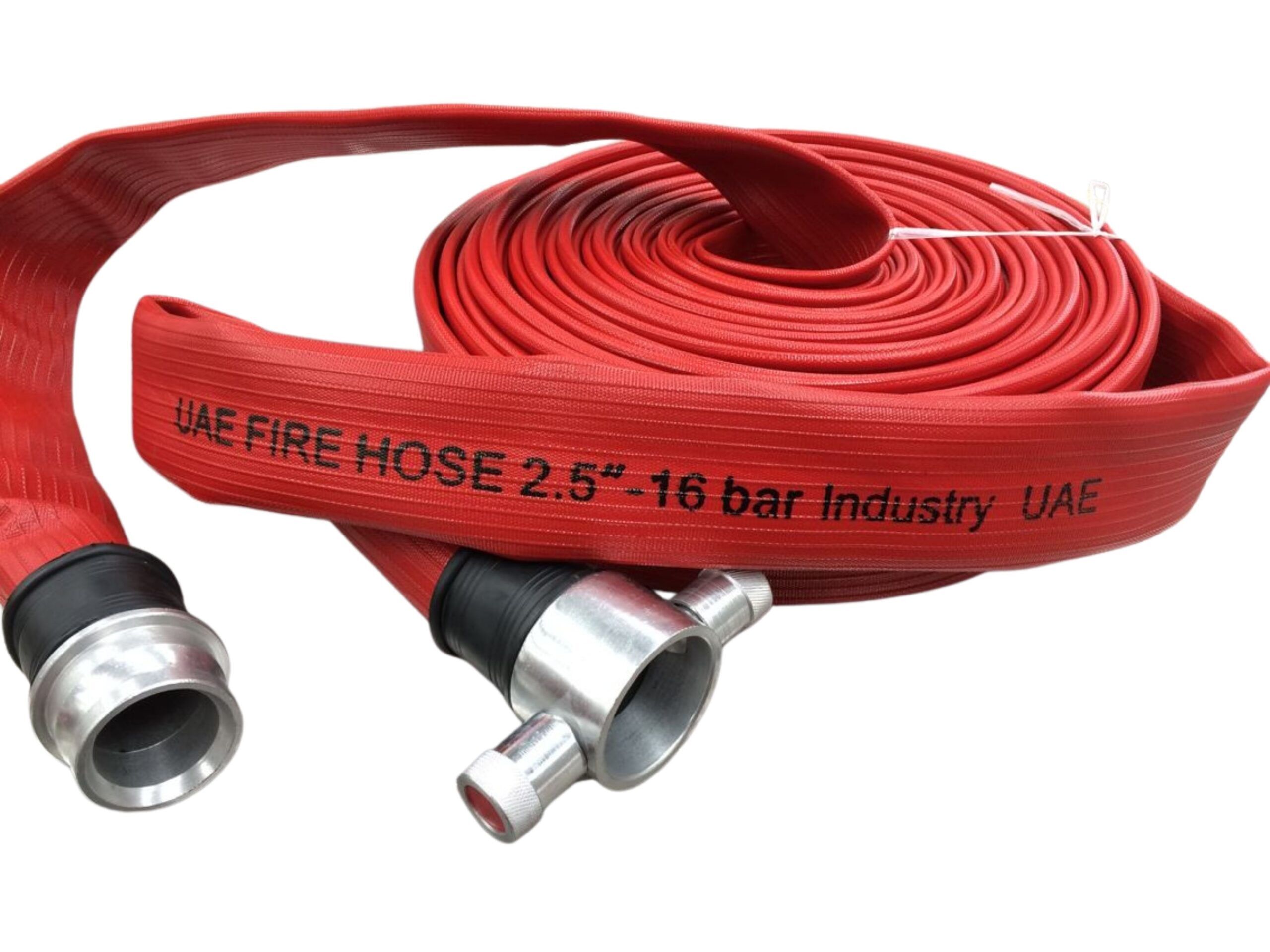

Durable Hose with Aluminum John Morris Coupling
Additional information
| Diameter (mm) | 25, 32, 40, 45, 50, 65, 80, 100, 125, 150, 200 |
|---|---|
| Diameter (inch) | 1'' 1-1/4'' 1-1/2'' 1-3/4'' 2'' 2-1/2'' 3'' 4'' 5'' 6'' 8'' |
| Working Pressure (Bar) | 8, 10, 13, 14, 15, 16, 17, 21 |
| Working Pressure (Psi) | 120, 150, 190, 200, 220, 235, 250, 300 |
| Bursting Pressure (Bar) | 24, 30, 39, 42, 45, 48, 51, 63 |
| Bursting Pressure (Psi) | 360, 450, 570, 600, 660, 705, 750, 900 |
Product Details
Verification to : Standard: BS EN 14540:2014
Jacket
Warp: Polyester yarn/ Polyester industrial silk
Weft: Polyester industrial silk
Lining (Outer & Inner): Nitrile rubber + PVC

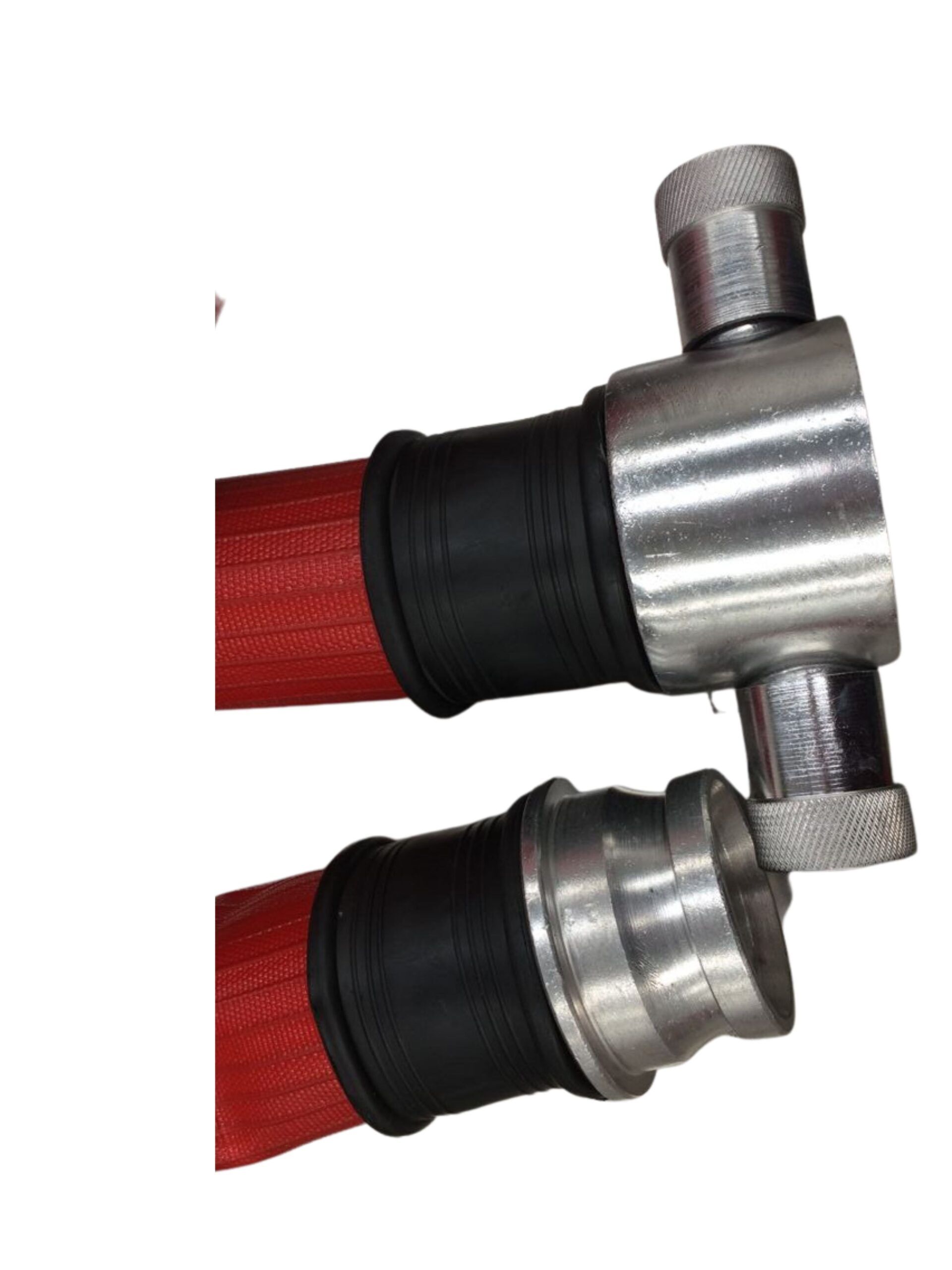

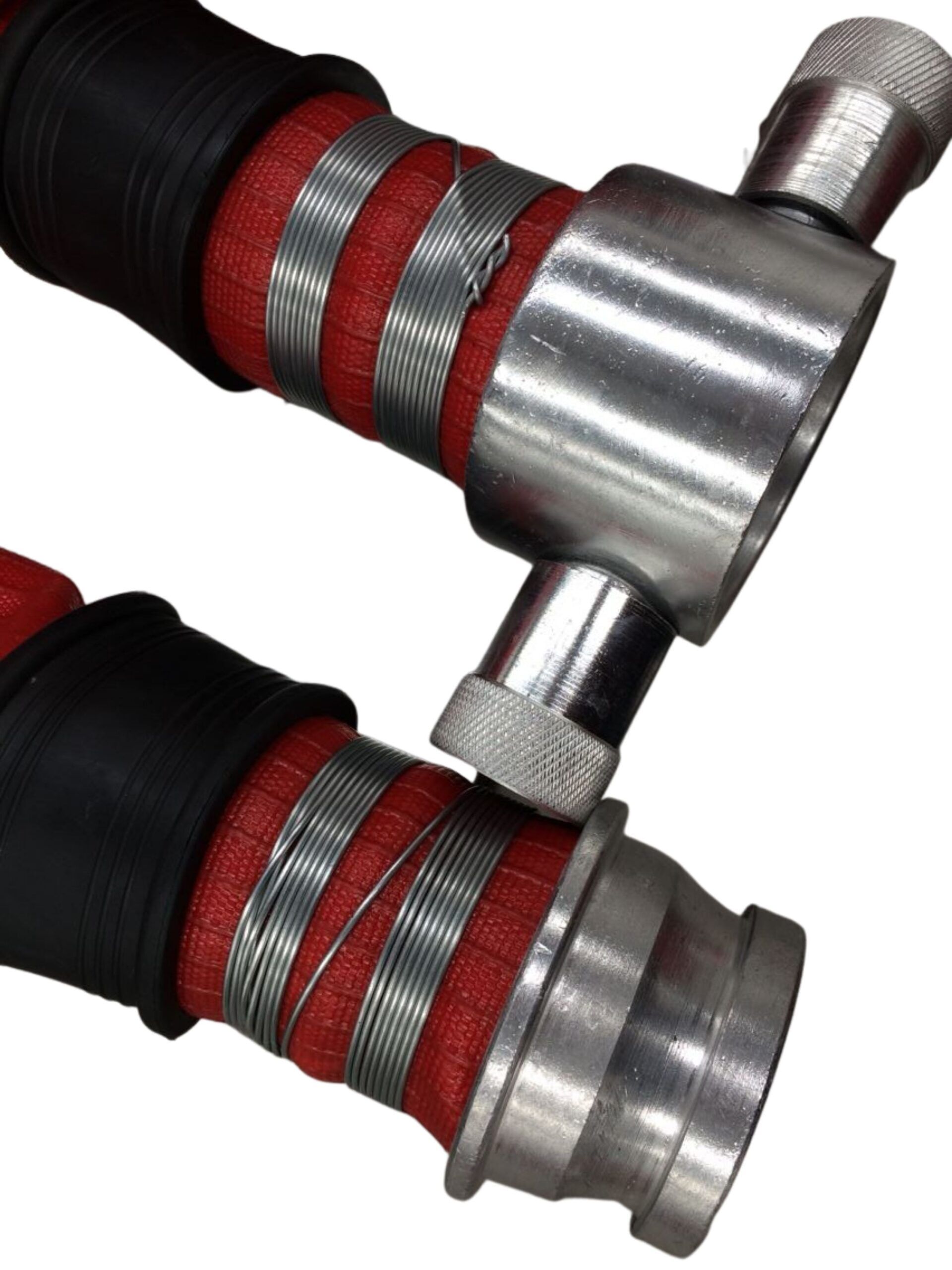

Coupling: Aluminum John Morris Coupling
Color: Red
Performance: Oil resistance, abrasion resistance, ageing resistance and seawater corrosion resistance.
Application: Mainly used for matching with fire trucks, forest fire fighting, marine water supplying and so on.
Length: Regular 15m-30m
